Trinity River COMMON VISION

With a rapidly growing population, the Dallas/Fort Worth Metroplex is the nation's largest inland metropolitan area. To assure an adequate long-term drinking water supply, each of the major branches in the upper watershed has been impounded with manmade reservoirs. Thus the Trinity River as it flows through the urban core faces great extremes, with low flows composed almost totally of treated wastewater to massive floods with the potential for billions of dollars in damages and untold loss of life across its 240 square mile floodplain.

The cooperative regional effort to manage the Trinity River Corridor began in the early 1980's when USACE began working on a Regional Environmental Impact Statement (Regional EIS) to address the cumulative impacts of individual permitting decisions. A working group of staff from the affected local governments and NCTCOG provided input. The draft of the Regional EIS first compared the cumulative impacts of two opposite philosophical approaches for utilizing the river corridor—maximum environmental quality versus maximum development—and found that maximum development would result in flood flows that would overtop existing levees in Dallas and Irving. Given the seriousness of these preliminary findings, a special Strategy Committee of elected local government officials was formed to assist in the development of the Regional EIS.

As expected, local involvement in USACE's preparation of the final Regional EIS was much more intense, with many meetings and several new development scenarios crafted between the two extremes. The final Regional EIS found that these more moderate development scenarios would not only result in the Dallas Floodway levees still being overtopped with catastrophic results, but that properties in upstream cities would also sustain considerable flood damages. Thus no city could assure adequate flood protection for itself by itself—only a common approach could be successful.

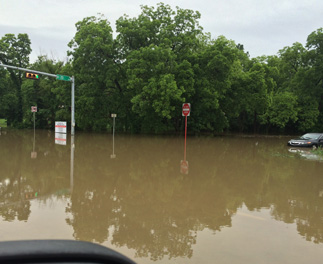

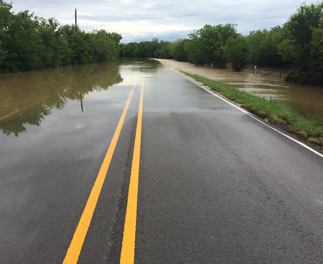

Although no proof was required, Mother Nature stepped in anyway. Major floods occurred in May/June 1989 in the Upper Trinity River. Over a dozen lives were lost as a result of the floods within the Metroplex and hundreds of millions of dollars of damages were sustained.

In 1989 NCTCOG adopted a Regional Policy Position on Trinity River Corridor that affirmed, among other key points, that local governments must be the stewards of the Trinity River Corridor because individual goals can only be achieved through cooperative management and a comprehensive approach addressing flood damage reduction, recreation, and environmental quality must be pursued.
Upon request of the affected local governments, Congress authorized the USACE to undertake a Reconnaissance Study to determine if a feasible flood protection plan(s) could be identified to reduce the risk of flooding, as well as address water quality, recreation, environmental enhancements, and other allied purposes. The USACE studied a variety of flood control options and found at least a dozen with positive benefit-cost ratios that merited further attention in the Feasibility Study phase.
It was now time for local governments to act. In 1990, each of the nine cities (Arlington, Carrollton, Coppell, Dallas, Farmers Branch, Fort Worth, Grand Prairie, Irving, and Lewisville), three counties (Dallas, Denton, and Tarrant), and two special districts (Tarrant Regional Water District and Trinity River Authority) with development and regulatory authority for the Trinity River Corridor executed inter-local agreements with NCTCOG to establish a formal structure for cooperative planning. A Steering Committee of elected officials was formally appointed to provide policy guidance, along with a staff task force for technical support.

NCTCOG, on behalf of the local governments, was identified as the administrative agent to enter into a cost-sharing agreement with the USACE for the Upper Trinity River Feasibility Study. Even at this stage it was recognized that a more comprehensive COMMON VISION was needed and would be pursued not only with the Corps but other local, state, and federal partners.

Upper Trinity River Feasibility Study

In 1990, the first phase of the Upper Trinity River Feasibility Study began as an $8 million six-year effort, with NCTCOG responsible for providing the $4 million non-federal match. In turn, NCTCOG negotiated and administered a $2 million grant from the Texas Water Development Board and obtained the $2 million of local funds on a pro-rata annual formula based on the jurisdiction's land area within the corridor. NCTCOG's funding support came from a portion of the local share.

The purpose of the Upper Trinity River Feasibility Study was to seek potentially feasible alternatives for implementation by the participating local governments to address flood damage reduction, water quality, environmental enhancement, recreation, and other related needs throughout the Trinity River Corridor.

The Phase I Information Paper released in early 1995 identified potential projects with a preliminary positive benefit-cost ratio. The paper concluded that seven of the 14 structural flood control measures were economically viable, and a total of 11 water quality improvement and 20 environmental enhancement measures warranted further study. In addition, 38 recreational development measures were also found to be feasible, as well as cooperative approaches to watershed management. In all, more than 100 projects were identified that could justify federal cost-share participation.

The Projects

The second phase of the Upper Trinity River Feasibility Study identified implementable projects through Project Management Plans to reduce flood risks, restore environmental values, and meet other study purposes.

Between 1996 and 2003, projects totaling more than $12 million had been implemented. For a project to be initiated the local entity with jurisdiction must determine its interest and willingness to share in the cost of the project.

The following are the initial projects.

Arlington Johnson Creek Buyouts: The project includes the demolition of 140 structures, mostly homes, that have experienced repeated flooding along Johnson Creek. As of spring 2003, most have been demolished and native habitat restoration had begun.

Dallas Floodway/Elm Fork Project: As part of the larger city efforts, several floodway initiatives were investigated by the USACE, including: raising the existing levees, lake development, channel meandering, modification of a bridge, and recreation facilities.

Clear Fork/West Fork Project: Tarrant Regional Water District with Fort Worth Streams & Valleys, Inc. developed a comprehensive master plan to preserve and enhance over 70 miles of river corridor.

Big Fossil Creek Watershed Project: The nine local governments in this fast growing, 73 square-mile watershed together evaluated flood damage reduction, ecosystem restoration, water quality, and recreational opportunities.

Lake Worth Project: Fort Worth sought solutions to water quality and sedimentation problems in Lake Worth.

Trinity Trails System: In 1996 the Trinity Trails Advisory Committee adopted a proposed alignment for the 250-mile “spine” of the regional Trinity Trails System. The project is works to create a continuous recreation corridor with a multi-use trail along the Trinity River Corridor in North Central Texas and northward to the Red River.

Corridor Development Certificate Process: The studies called for stricter regulation of development within the corridor to stabilize the flood risks. After several years of detailed discussions, an innovative Corridor Development Certificate (CDC) process emerged in the early 1990's. Local governments still issue the development permit under the National Flood Insurance Program, but common requirements have been added (and adopted by each city in its floodplain ordinance). The CDC process includes USACE review of every CDC request for its flood impact and gives other participating local governments along the corridor 30 days to review and comment upon the development request. While the individual city still makes the final call, it is well understood that a bad decision will land it in court with other cities.

Learn more about the Corridor Development Certificate Process

The Partnerships

One key to the success of the Trinity River COMMON VISION program has been meaningful intergovernmental partnerships—among local governments themselves and with federal and state agencies. Whatever is done to reclaim or preserve a river corridor in an urban region requires local government action—zoning, permits, capital expenditures, and maintenance. While the USACE and other federal and state agencies have important roles, local governments are responsible for the overall health, safety, and welfare of their own citizens. But local governments cannot and should not act alone; thus the importance of partnerships. Following are examples of state and federal partnerships that have contributed to the success of the COMMON VISION:

Texas Water Development Board has been a very important cost-share partner. The TWDB provided almost half of the local cost-share, in the amount of $1.875 million, for the first phase of the Upper Trinity River Feasibility Study through 1996. In July 2000, the TWDB approved $375,000 for half of the non-federal cost-share participation in the Big Fossil Creek Watershed Study, which is an implementation project in the second phase of the feasibility study.

Texas Parks & Wildlife Department has provided funding directly to various local governments for park and trail activities along the Trinity River.

Texas Commission on Environmental Quality is the regulatory agency for local storm water discharge and other water-quality related permits and has provided opportunities for local stakeholder involvement in its many activities.

The Federal Emergency Management Agency has conducted weeklong certification training for local governments in cooperation with NCTCOG. These are unique sessions away from their headquarters; as a result, Texas is leads the nation in Certified Floodplain Managers.
